<=KNEC Craft Certificate in ICT module 1 Basic Electronics past paper: July 2018 with video(s)

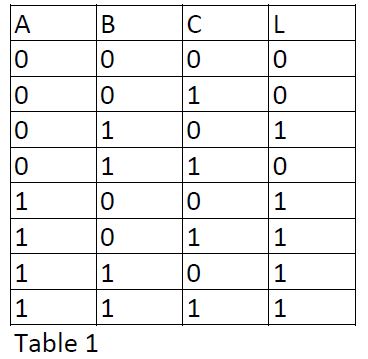

Table 1 represent a truth table for a logic circuit. Use it to answer the questions
that follow.
i)Derive the boolean expression for the sum of products
ii)Use K-map to simplify the boolean expression
that follow.
i)Derive the boolean expression for the sum of products
ii)Use K-map to simplify the boolean expression
