<=KNEC Diploma in Electrical and Electronics Engineering Module II: Electrical Power Generation, Transmission and Protection past paper July 2016

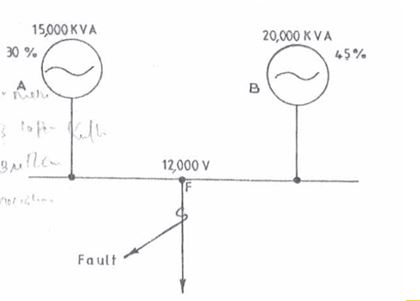

Figure I shows a single line diagram of a three phase system. The percentage reactances of each alternator is based on its own capacity:
(i) Determine the short circuit current that will flow into a complete three-phase short circuit at F;
ii) Sketch the equivalent reactance diagram.
(i) Determine the short circuit current that will flow into a complete three-phase short circuit at F;
ii) Sketch the equivalent reactance diagram.
