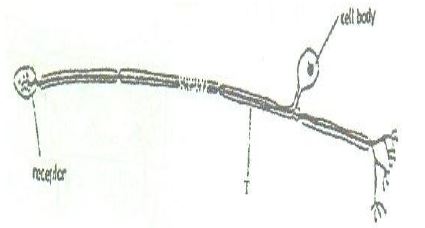

The diagram below represents a nerve cell.

(a) (i) Identify the nerve cell
ii) Give a reason for your answer in (a) (i) above
(b) Name the structure labeled T
(c) Using an arrow indicate on the diagram the direction of movement of an impulse in the cell.

Answer:

a)
i)
- Sensory neurone
ii)
- Cell body is off the axon or neurone is unipolar.
- Both axon and Dendron are long
b)
- T: myelin sheath or neurilema
c)
- Direction of impulse from receptor towards cell body
