<=Diploma in ICT module 3 Data Communication and Networking past paper: July 2011

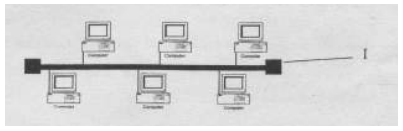

Figure 2 shows a network design. Use it to answer the questions that follow.
i) Identify the type of topology used in the design. (1mark)
ii) Explain the function of the component labeled 1. (2marks)
iii) Describe the media access method used in the topology identified in (i). (2marks)
iv) Outline three advantages of the topology identified in (i) (3marks)
i) Identify the type of topology used in the design. (1mark)
ii) Explain the function of the component labeled 1. (2marks)
iii) Describe the media access method used in the topology identified in (i). (2marks)
iv) Outline three advantages of the topology identified in (i) (3marks)
